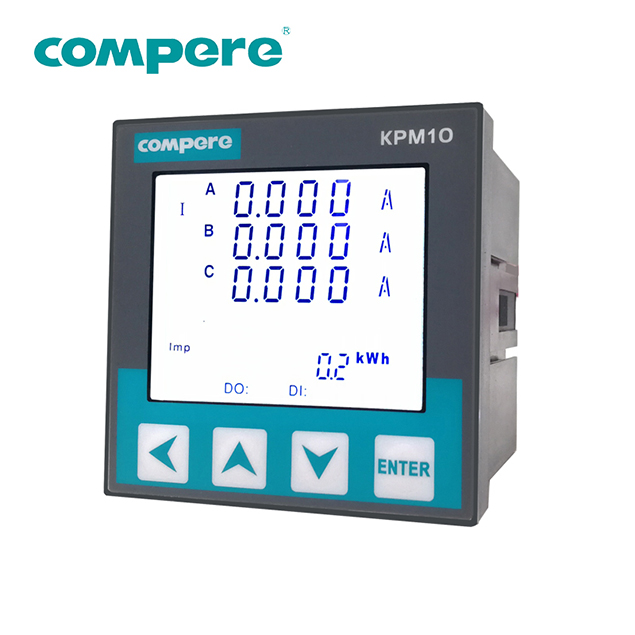

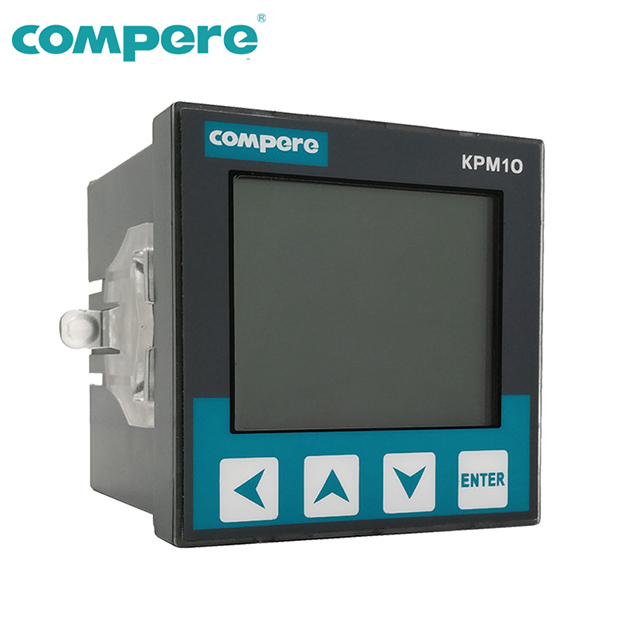

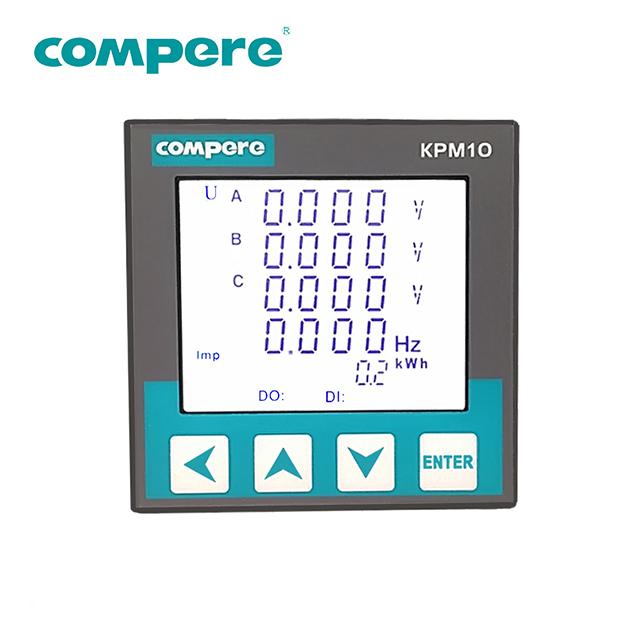

        KPM10 3-phase power meter





                            KPM10 three-phase multi-function power meter was designed thatusing advanced 32-bit ARM processor and digital signal processing technology comprehensive set of three-phase electrical parameter measurement / display, power accumulation,etc.












                   Overview
                    Function
                    Specifications
                    Wiring Diagram
                    Download






                             KPM10 three-phase multi-function power meter was designed that using advanced 32-bit ARM processor and digital signal processing technology comprehensive set of three-phase electrical parameter measurement / display, power accumulation, fault alarm, harmonic measurement, digital inputs, relays Output and network communications in one. Standard 72 panel, large screen LCD screen, standard 1-way RS485 communication interface. With high precision, strong isolation, stable performance, anti-interference ability etc.

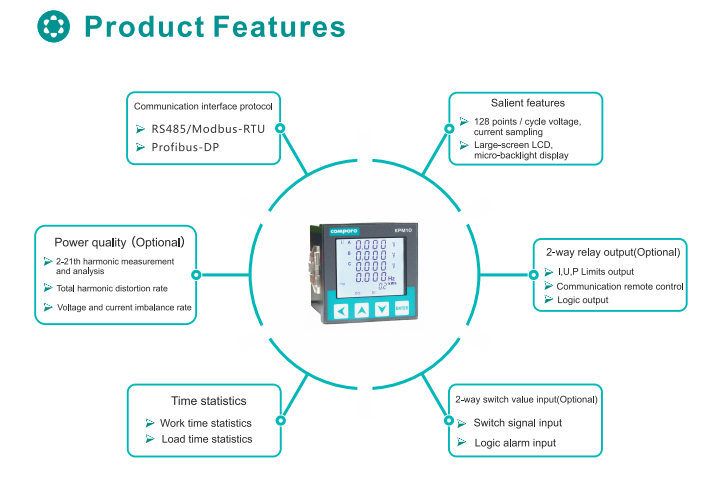

                        Function features



□ Measuring three-phase AC voltage, current, active / reactive power, active / reactive energy, power factor and other 30 kinds of basic parameters.

□0.5Slevel two-way four-quadrant power statistics.

□Working hours, load time statistics.

□Support up to 21 harmonic distortion rate calculation, total harmonic distortion rate calculation, voltage and current imbalance rate, the current K-factor calculation.

□Standard 1 –way RS485 communication interface, Modbus protocol.

□Can be extended 2-way passive switch value input.

□Can be extended 2-way relay output.

□128 points / cycle voltage, current sampling, high measurement accuracy.

□LCD large-screen, micro-backlight display, in the light and wide viewing angle to obtain good visual effects.
























				KPM10Multifunction meter-Technical parameters





				Working power source

				Operating Voltage

				AC85~265V/DC80~300V





				Rated power

				＜3VA





				Input voltage

				Rated voltage

				57.7/100V, 220/380V, 380/660A(needs customization)





				Sill value

				5V





				Overload capacity

				1.2 times rated voltage allowed, continuous work; 2 times the rated voltage allowed 1second





				Power consumption

				＜0.5VA/phase（rated）





				Measurement range

				5~260VAC，





				Frequency range

				45~65Hz





				輸入電流/Input current

				Rated current

				Default 5A，Input range 1-6A；Optional 1A，Input range 1-1.2A





				Sill value

				5A Configuration，5mA；1A Configuration，0.8mA





				Overload capacity

				1.2 times rated current allowed, continuous work; 20 times the rated current allowed 1 second





				Power consumption

				＜0.75VA/phase（Rated current 5A）；＜0.25VA/phase（Rated current 1A）





				Frequency range

				45~65Hz





				Input/Output

				Switch value input

				2-way passive main line contact DI input, internal supply DC24V power source





				Relay output

				2-way DO output，Contact capacity 250VAC/5A，30VDC/5A





				Power quality monitor

				Harmonic measurement

				Voltage/current2~21th harmonic distortion rate、total harmonic distortion rate.





				Harmonic distortion rate

				Phase voltage, line voltage





				Imbalance rate

				Voltage. current





				Measurement accuracy

				Voltage

				±0.2%(0.01V)





				Current

				±0.2%(0.01A)





				Active power

				±0.5%(0.1W)





				Reactive power

				±2.0%(0.1kvar)





				Active energy

				±0.5%(0.1kWh)





				Reactive energy

				±2.0%(0.1kvarh)





				Power factor

				±0.5%(0.001)





				Frequency

				±0.02Hz(0.01Hz)





				Temperature

				±1℃（1℃）





				Communication

				Communication interface

				RS485，Photoelectric isolation interface





				Communication protocol

				Modbus-RTU，1200~38400bps





				Electrical insulation

				Power frequency withstand voltage

				AC2kV/min~1mA Input-output-power source （GB/T 13729）





				Insulation resistance

				＞50MΩ                            （GB/T 13729）





				Impact voltage

				5kV（Peak），1.2/50us    （GB/T 13729）





				Working environment

				Operating temperature

				-25℃ ~ +70℃





				Relative humidity

				5%~95% No condensation





				Storage temperature

				-30℃ ~ +75℃





				Altitude

				No more than 4000m





				Electromagnetic Compatibility

				Surge (impact) immunity

				GB/T 17626.5-2008，Level4





				Electrical fast burst immunity

				GB/T 17626.4-2008，Level4





				Electrostatic discharge immunity

				GB/T 17626.2-2006，Level4





				Power frequency magnetic field immunity

				GB/T 17626.8-2006，Level4

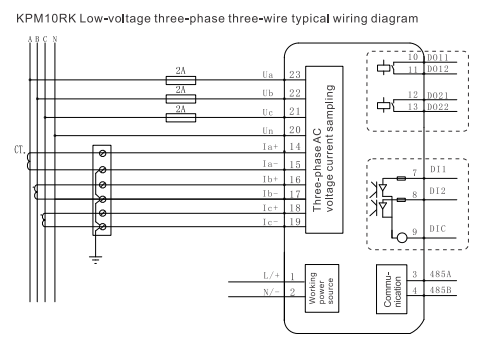

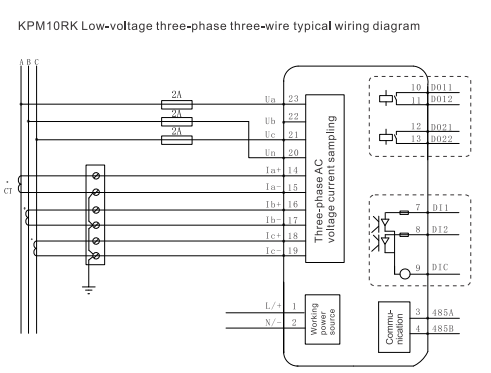

	Explanation

	1. The wiring diagram is suitable for low voltage three-phase three-wire system, low voltage three-phase four-wire system

	2. The function of dotted lines is optional

	3.The final interpretation belongs to Compere
